Koyo Composite (Holden/Ford) Marine Bearing Kit

Description

Koyo composite (Holden/Ford) marine bearing kit.

Trailer wheel bearings comprise of two parts, the cup which is pressed into the hub and the cone, this is the part that contains the rollers of the trailer wheel bearing. Trailer wheel bearings should always be replaced in a set, that is the cup and cone together.

In a bearing combination in a hub, the bearing on the inside of the hub flange (the side closest to the centre of the trailer) is called the inner bearing.

The bearing on the outside is called the outer bearing.

Composite (Holden/Ford bearings) are rated for 1100Kg on a 40mm square axle.

Koyo bearings are a quality Japanese made bearing.

This bearing set is generally only used on old trailers & caravans and is an uncommon bearing group on modern trailers. Please be sure to check you are purchasing the correct bearing kit.

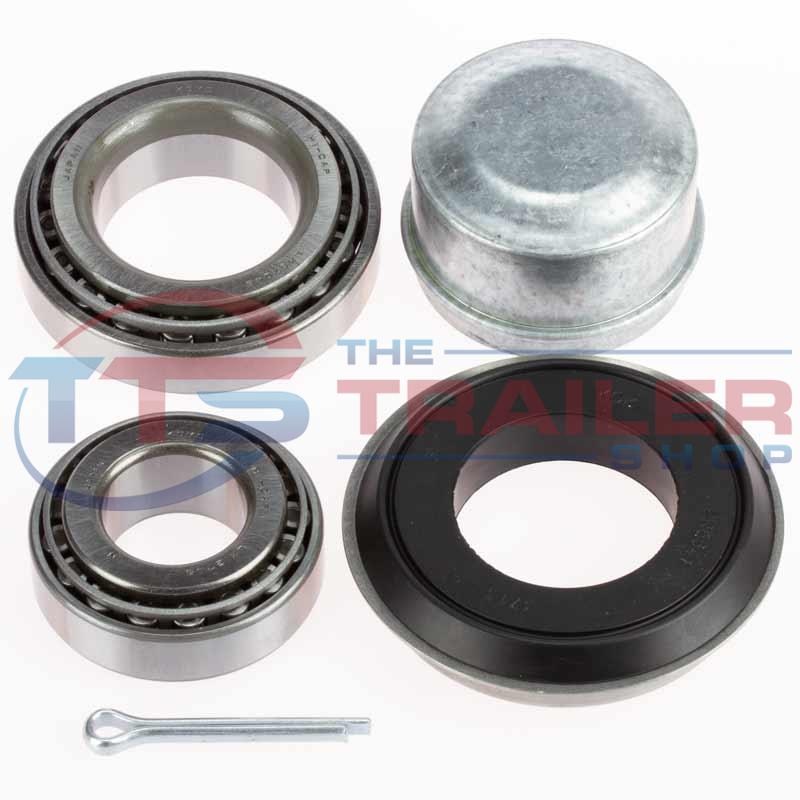

Koyo composite marine bearing kit includes:

• 1 x Set 6 bearing – 67048 cone & 67010 cup (67048/10)
• 1 x Set 12 bearing – 12749 cone & 12710 cup (12749/10)
• 1 x Dust cap 45mm
• 1 x Marine seal 1.500″ x 2.328″ x 0.393″ (38.1 x 59.1 x 10mm)
• 1 x Split pin M4 x 32mm zinc
