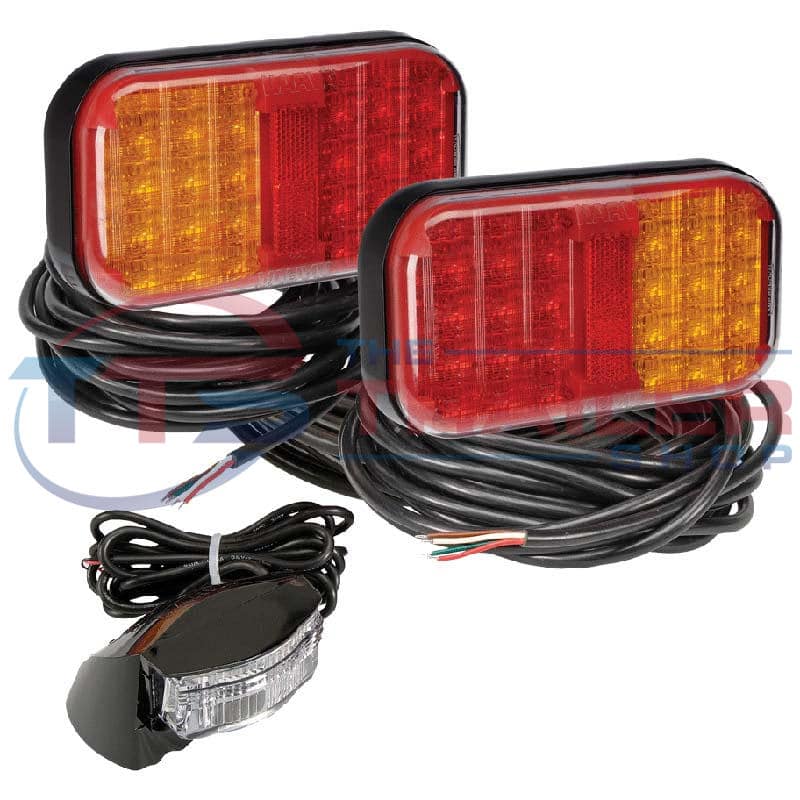

Narva Model 41 LED Submersible Trailer Lamp Pack

SKU: 94142TP
Share:

Description

Narva Model 41 LED 9-33 Volt L.E.D submersible trailer lamp Rear Stop/Tail and Direction Indicator Lamp.

Designed around the popular Model 42 range of rear combination lamps, the Model 41 family boasts all the same features as their larger counterpart but in a smaller more compact package. They offer a fresh, modern design utilising the latest in high performance L.E.D.’s, virtually unbreakable polycarbonate lenses, multi-voltage circuitry, stainless steel fittings and are sonically sealed with 9.0m of hard-wired cable. Fully “E” and ADR compliant the lamps are available in single, double and triple housing combinations and feature an intelligent ‘snap-in’ base system allowing the lamp to be fastened one of two ways depending on the application. Where access to the rear of the lamp is difficult it can be fixed via the supplied self tapping stainless steel screws, alternatively stainless steel bolts are provided that can be tightened from the rear.

Virtually unbreakable polycarbonate lens.
2 lamps and a 9-33 Volt licence plate lamp.
9.0m hard wired tinned cable.
In-built retro reflector.
Stainless steel fittings.

Additional information

Weight 2 kg
Dimensions 30 × 27 × 10 cm
Brand

Specifications

Input Voltage Range: 9-33 Volt
Current draw: Indicator: 0.42A, Stop: 0.42A, Tail: 0.09A
LP rating: IP66 and IP67
Size: 180 X 100mm
Candela rating: 83
ADR: 6/00 2a-E9-01.6255 (cat 2a), 47/00 IA-E9-O2.1446 48/00 31770 49/00 R1-S1-E9-02.6255

94142TP model 41 narva dimensions
