Description
Looking for increased versatility for your utility, landscape, or construction trailer? Designing a trailer to have its deck drop down to the ground? Working on another type of light-fit custom or retrofit rig?

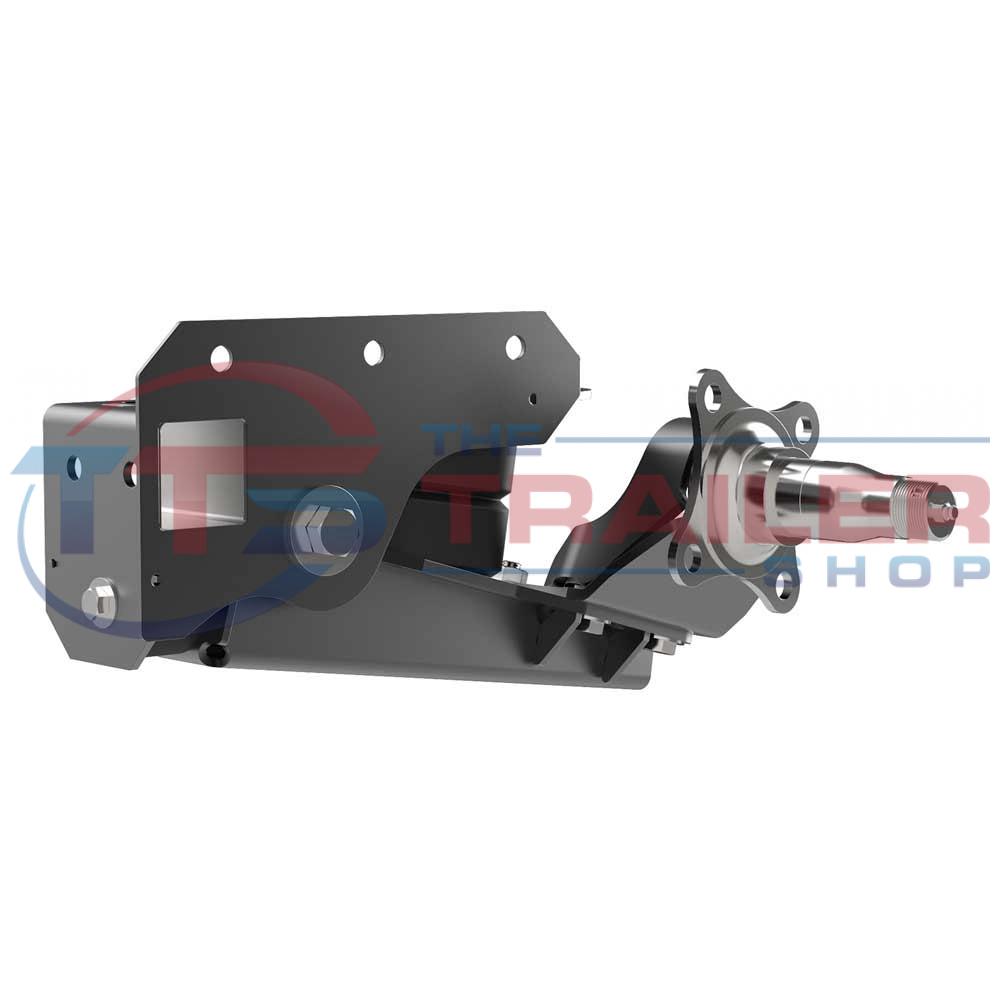

Timbren’s Axle-Less trailer suspension kits offer ultimate creative freedom for your custom trailer build.
With no through axle, there’s no need to worry about ordering the correct axle dimensions. Shims are also supplied giving you the flexibility to adjust, if necessary, the suspension alignment and camber specific to your trailer frame. And polyurethane bushings — used at the pivot point on the control arm — hold the pin firmly in place, resulting in better stability and a more controlled alignment with each moving component.

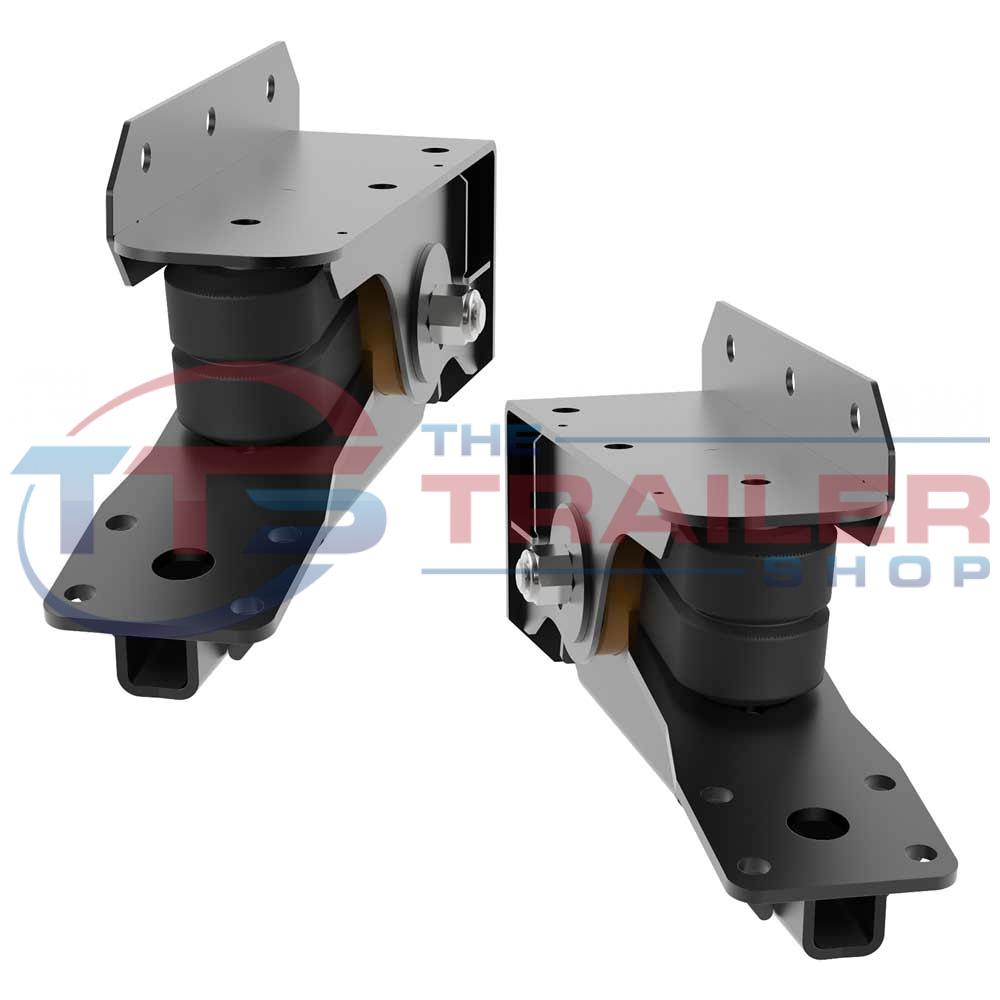

Axle-Less trailer suspension features two Aeon® rubber springs, one for jounce and one for rebound, absorbing road shocks and allowing for a quiet, smooth ride, whether on the highway or down a dirt road.
Durable and weather-resistant, these suspensions are built to last in any environment, from the heat of the Australian Outback to the sub-freezing winters of Canada.

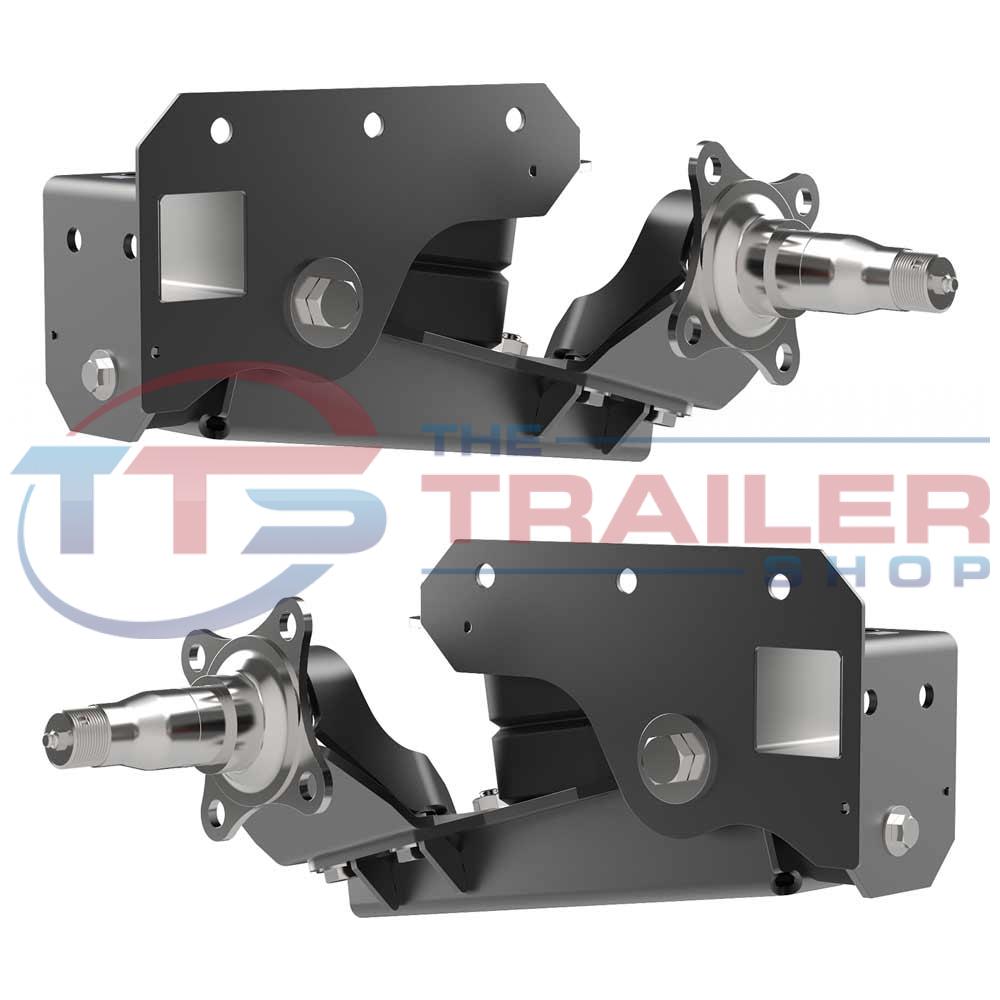

Each Axle-Less trailer suspension kit comes with both driver and passenger side to give you a full suspension.

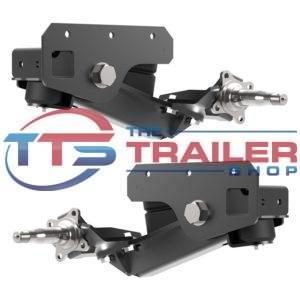

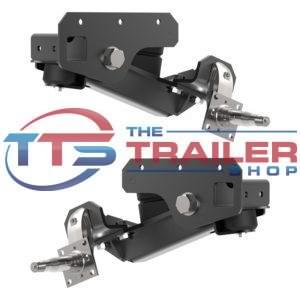

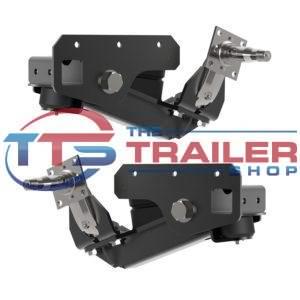

Need something more suited for off-roading and overlanding? We recommend our HD series of Axle-Less trailer suspensions.
If you’re planning to take your trailer off-road and/or use tires bigger than 225/75R15, we recommend you choose the 900Kg HD line of suspensions Here.
Key Features
- Standard spindles for use with standard-width tires 225/75R15 or smaller (subject to rim off-set)
- Brake flange included for optional brakes
- Smooth quiet ride empty & loaded
- Galvanised finish
- Easy bolt-on installation
- No thru axle
Specifications
900Kg trailer suspension capacity
Outboard arms with standard 3.5K spindles for tires 225/75R15 or smaller (subject to rim off-set)
What’s included in the box?:
Each Axle-Less trailer suspension kit comes with both driver and passenger side to give you a full suspension.
What’s Included

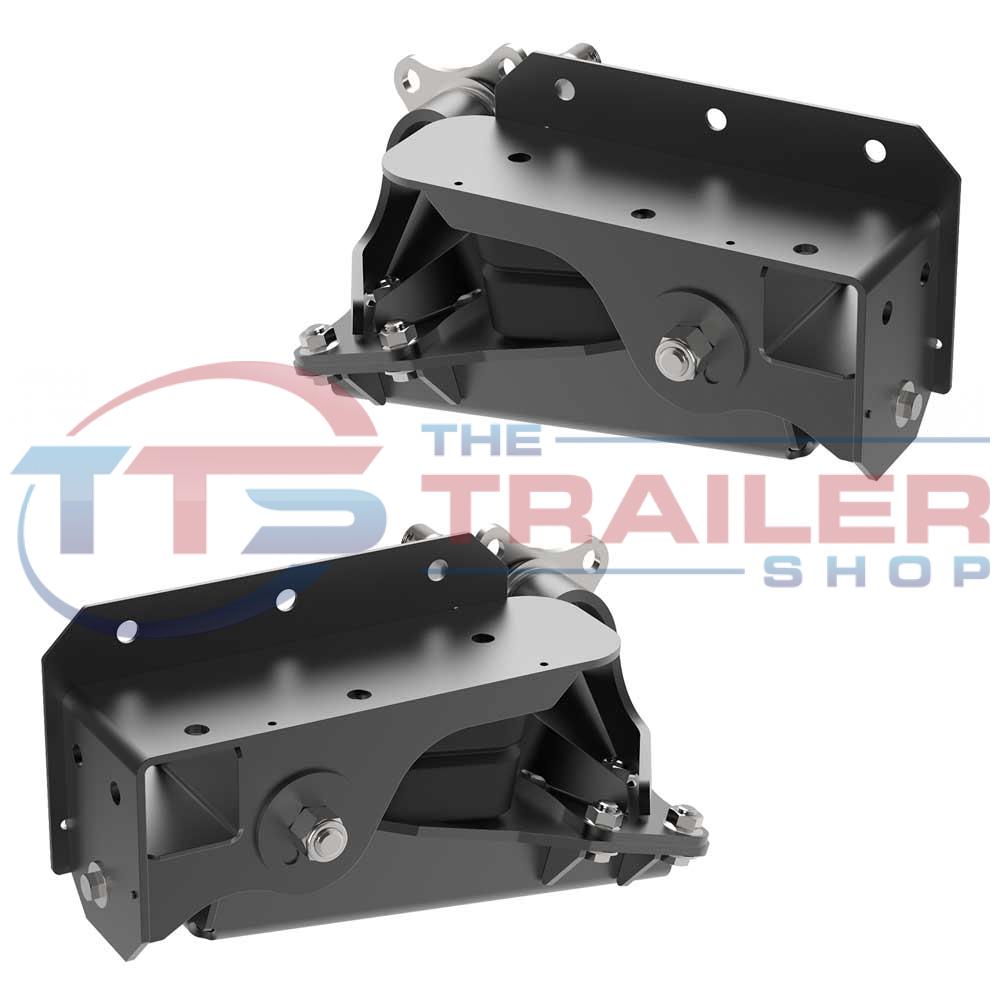

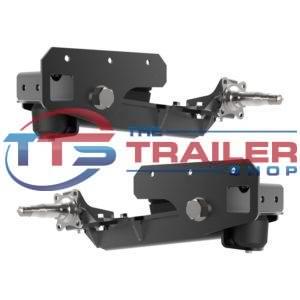

- 2 x suspensions

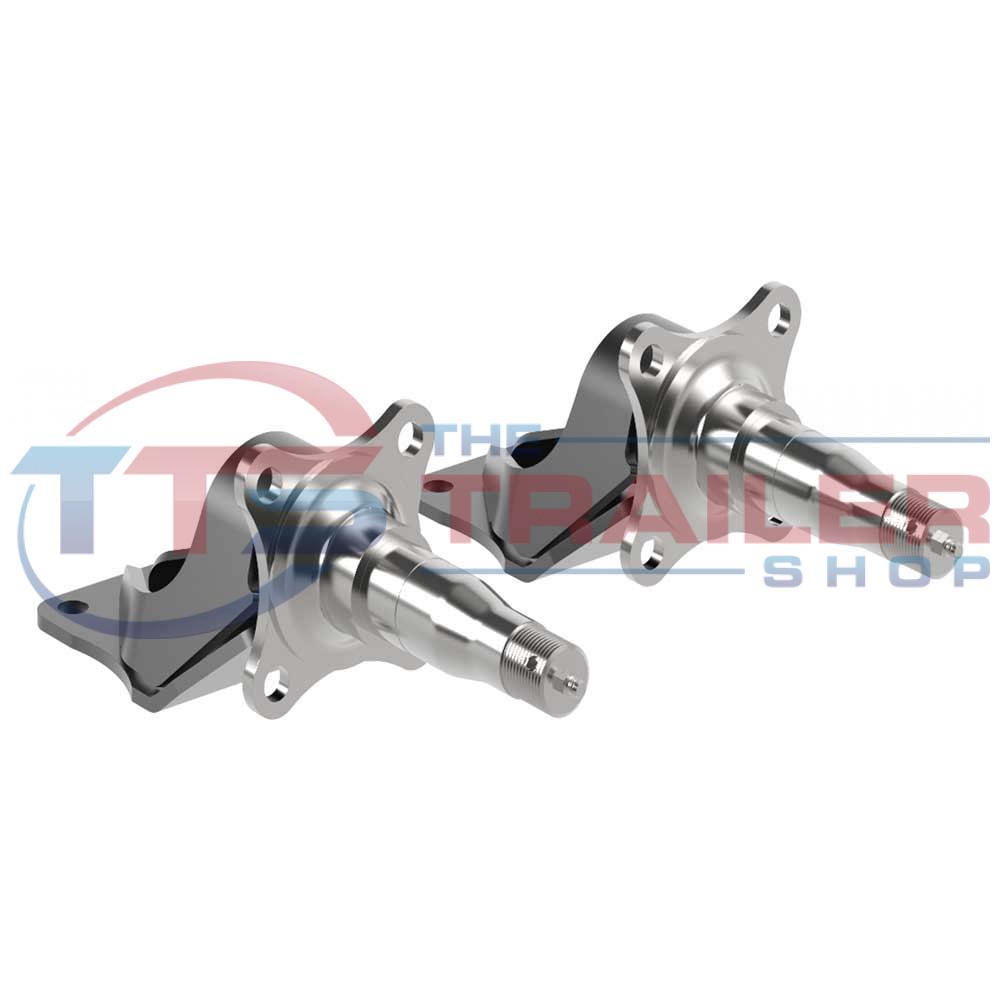

- 2 x outboard arms with spindles
- Grade 8 zinc coated hardware
- 8 x camber shims
How to Install
Click Here to download dimensions.
Click Here to download install instructions.
